CHARGESTORM® Connected 3e (CC3)
Eichrecht-Compliant Charging for the German Market

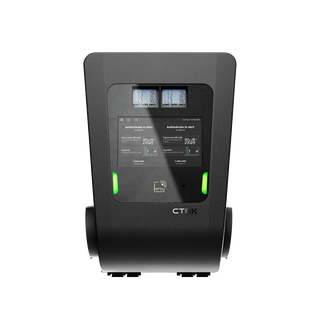

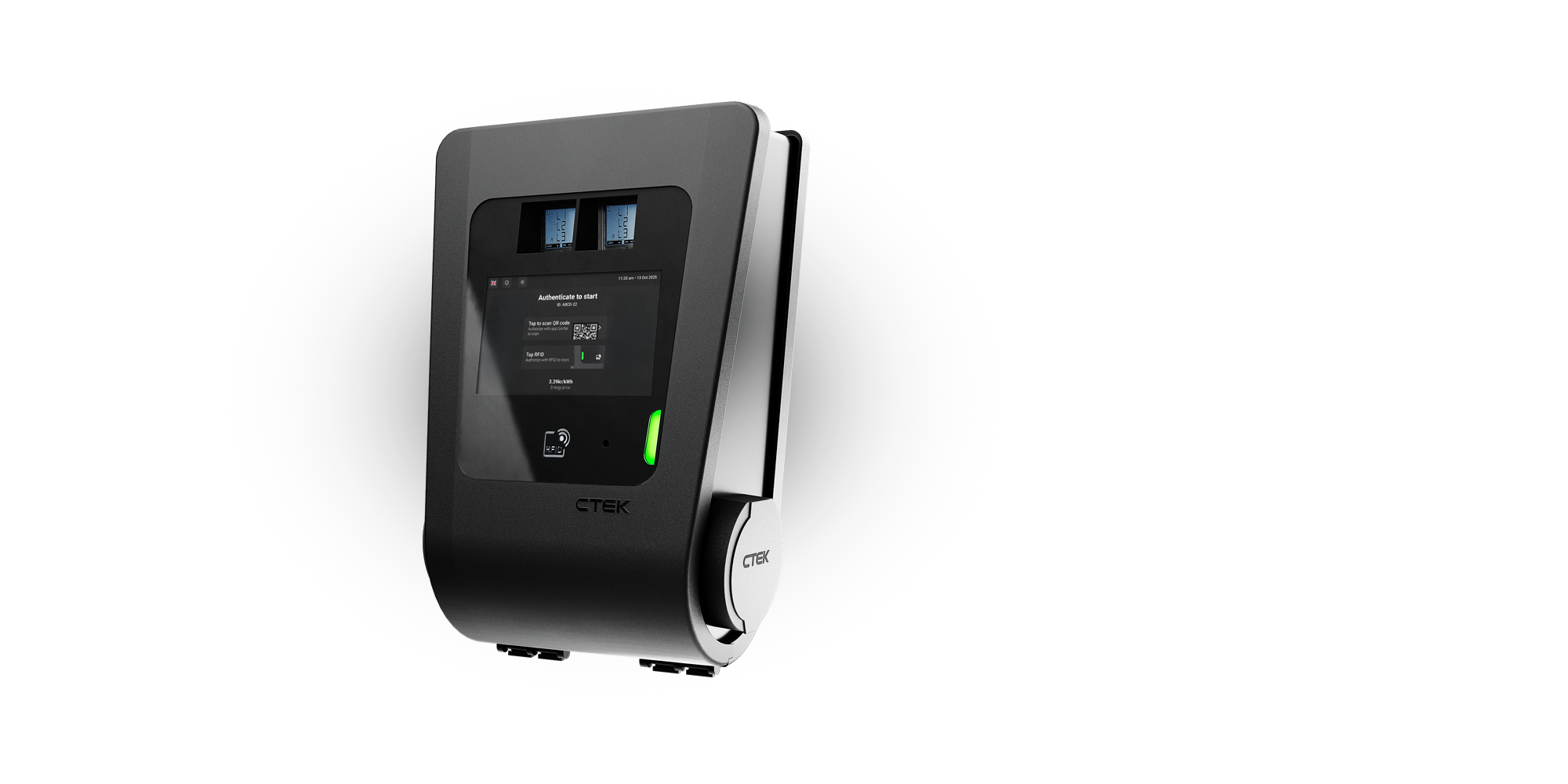

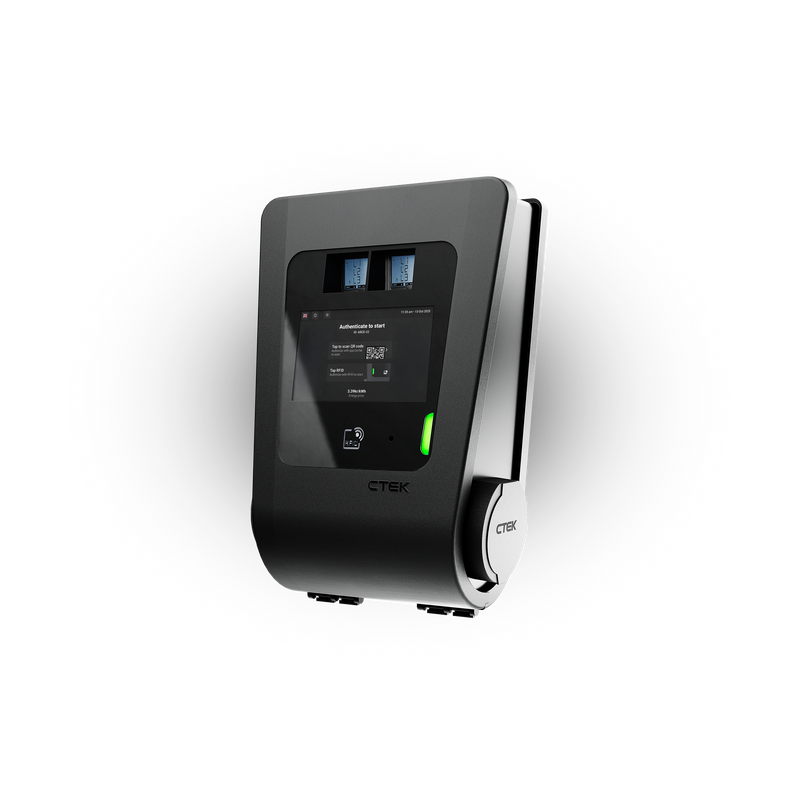

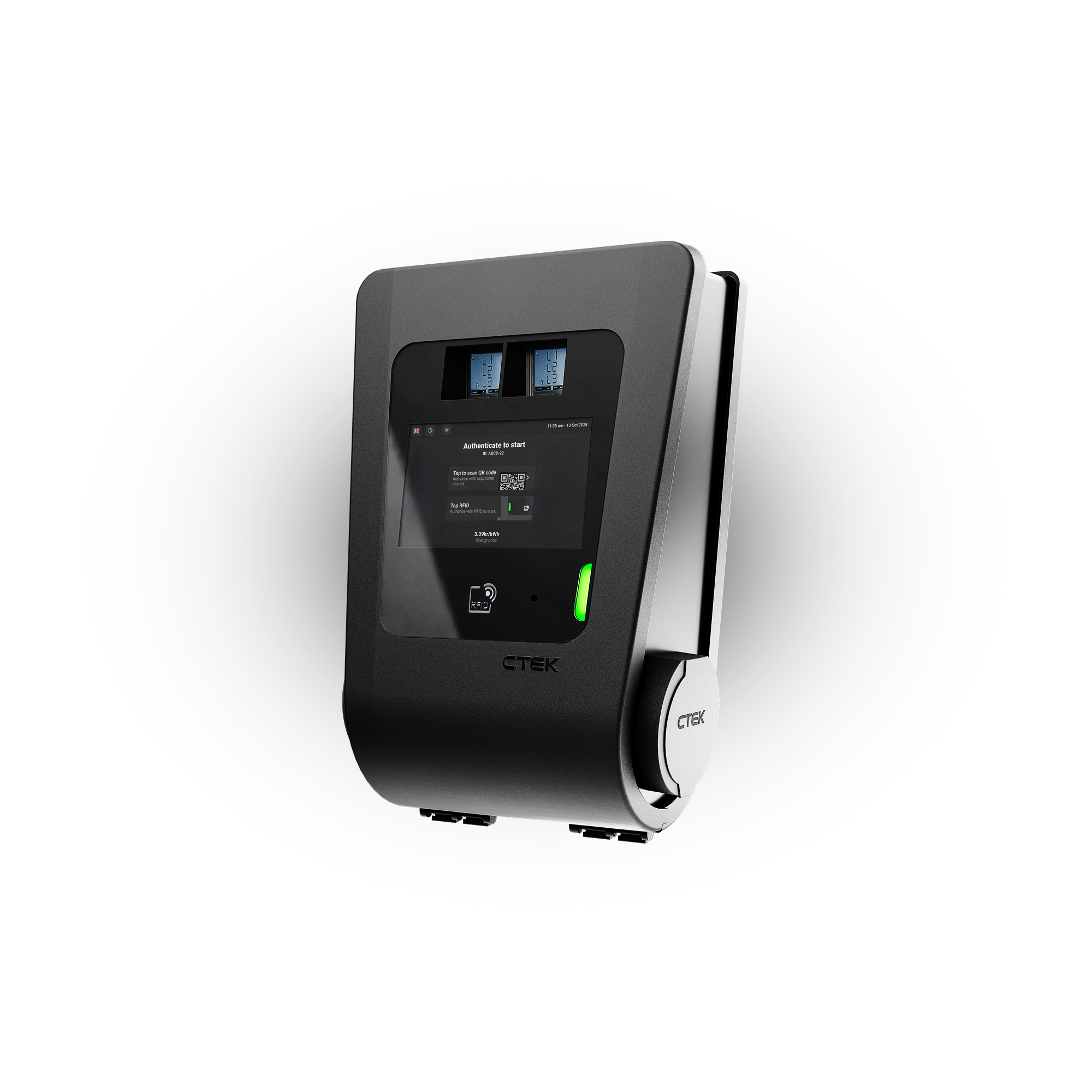

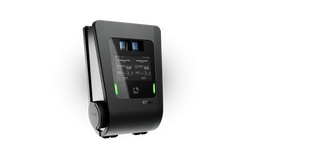

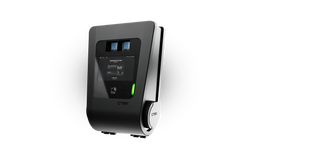

CHARGESTORM® Connected 3e (CC3e) is the Eichrecht-compliant model in the CC3 charger product family, designed specifically for regulated EV charging deployments in Germany.
Request a quote
Request a quote

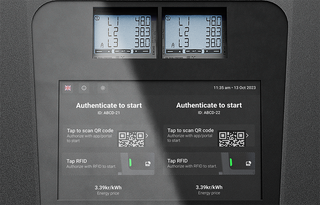

The CC3e features dual 7,4/22 kW AC outlets and a built-in 7” touchscreen that provides real-time charging status, pricing, energy consumption, and dynamic QR codes for seamless ad hoc payments. It supports smart charging via ISO 15118, with AutoCharge available today and Plug & Charge and Vehicle-to-Grid (V2G) capabilities planned in upcoming software updates – ensuring your investment is ready for the future of e-mobility.
;*;Compliant with German Eichrecht regulations for legal metering and billing in public EV charging;*;Power and network daisy-chaining;*;Ground fault reset by unplugging charging cable;*;Real-time pricing and energy data on 7” touchscreen;*;Tampering detection, monitoring unauthorized acccess to charger from backend;*;Enabling secure QR-code payments;*;Scalable, dynamic load balancing, up to 1000 charging points;*;Wifi hot spot for easy commisioning;*;Car authentication: ISO15118/AutoCharge ;*;Plug & Charge and V2G hardware-ready;*;EMS charging power control via Modbus/TCP;*;Cybersecurity: EN 18031 compliant;*;Awarded for reliable operation;*;Built-in modular RCD Type B (EN 60947-2)
| Charging Category | AC charging |
|---|---|
| Charging current | 32 A |
| Outlet | Dual type 2 outlets |
| Number of phases | 1-phase/3-phase |
| Load balancing | CHARGESTORM® CONNECTED 3e supports CTEK’s NANOGRID™ LOCAL PLUS and grid controller products – a high-performance, cost-efficient dynamic load balancing solution without requiring cloud access |
| Energy meter | MID approved;Eichrecht approved |
| Charging capacity | Up to 2 x 7,/22kW |
| Rated power | Up to 2 x 7,4/22kW |
| Rated voltage | 400 V |
| User interface | Includes 7" high-resolution touchscreen;LED symbols |
| Connectivity | 4G (optional);Wi-Fi;2 x Ethernet |
| App support | Third party |
| Ground fault detection | Modular RCD Type B (EN 60947-2),IΔn 30 mA |
| Ground fault reset | Semi-automatic |
| Authentication | RFID;OCPP;AutoCharge;Plug & Charge** |
| Communication protocols | OCPP 1.6/OCPP 2.0.1** |
| Compliance | CE;RED;IEC 62196;IEC 61851-1 |
| Ambient operating temperature | -30 °C to +50 °C |
| Dimensions | 161 x 281 x 416 mm (6.34 × 11.06 × 16.38 in) |
| Net weight | Up to 11 kg (24.25 lbs) |
| Impact protection | IK08 |
| Degree of protection | IP54 |
| Warranty | 3 years |
| Warranty information | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
CHARGESTORM® Connected 3 AC Charging Family
Three models. One proven charging system.
From this family
See CC3e in Action
Watch a short overview of how CHARGESTORM® Connected 3 supports scalable destination charging installations.
Part of the CC3 Product Family
CHARGESTORM® Connected 3 provides flexible AC destination charging.
CHARGESTORM® CONNECTED 3i
- User-friendly, integrated, 7” touchscreen with live charging data, cost transparency, and dynamic QR-code payments
- Single or dual 22 kW AC outlet delivers reliable, high-power charging for public and workplace locations
- Cybersecure, ISO 15118-ready platform with AutoCharge today and Plug & Charge hardware-ready
CHARGESTORM® CONNECTED 3e
- User-friendly, integrated, 7” touchscreen with live charging data, cost transparency, and dynamic QR-code payments
- Dual 22 kW AC outlets enable two vehicles to charge simultaneously, maximizing site throughput
- Cybersecure, ISO 15118-ready platform with AutoCharge today and Plug & Charge hardware-ready
Who CC3e is Designed for
CC3e is designed for organisations deploying public EV charging infrastructure in Germany where Eichrecht compliance is required.
Typical users include:
Charge Point Operators (CPOs)
operating public charging networks
Parking operators
offering regulated charging services
Municipalities and
local authorities
expanding public charging infrastructure
Charge Point Operators (CPOs)
operating public charging networks
Parking operators
offering regulated charging services
Municipalities and
local authorities
expanding public charging infrastructure
Commercial property owners
deploying public charging access
Transport hubs and public destinations
electrifying operational vehicles
CC3e supports installations ranging from single public sites to large charging networks, while meeting Germany’s regulatory requirements.
Deployed across workplaces, commercial sites, and public charging networks across Europe.
Trusted By The Worlds leading Brands
Built for Germany’s
Regulated Charging
Market
Germany’s EV charging regulations require certified energy measurement and transparent billing processes for public charging infrastructure.
Operators must ensure that charging systems provide accurate, verifiable energy data to support fair and transparent charging transactions.
CC3e is designed to support these requirements, allowing operators to deploy compliant EV charging infrastructure across Germany.
Key Capabilities.
CC3e builds on the proven CC3 charging product family while supporting regulatory compliance for the German market.
Eichrecht-Compliant Metering
Certified energy measurement ensures charging sessions meet Germany’s legal metering requirements.
Transparent Billing Data
Charging data can be verified and presented in line with regulatory transparency requirements.
Scalable Charging
Supports installations ranging from small public deployments to large charging networks.
Open Platform Connectivity
Integration with EV charging management platforms through open communication protocols.
Eichrecht-Compliant Metering
Certified energy measurement ensures charging sessions meet Germany’s legal metering requirements.
Transparent Billing Data
Charging data can be verified and presented in line with regulatory transparency requirements.
Scalable Charging
Supports installations ranging from small public deployments to large charging networks.
Open Platform Connectivity
Integration with EV charging management platforms through open communication protocols.
Reliable Charging
Infrastructure for
Regulated Markets
Deploying EV charging in regulated markets requires confidence that charging systems meet both operational and legal requirements.
CC3e combines the proven CC3 charging architecture with Eichrecht-compliant energy measurement, enabling operators to deploy compliant charging networks while maintaining reliable operation.
AC Charging
Up to 22kW
Charging outlets
Dual Type 2
Energy metering
Eichrecht-compliant
Authentication
RFID
Management platform
EC Charging Management Platform Integration
Connectivity
Ethernet, Wi-Fi and 4G
Support
Support scalable load management
