US 0.8

The US 0.8 uses state of the art technology for charging smaller batteries on motorcycles, jet skis, snowmobiles, ATVs and lawnmowers.

Description

12V | Compact smart 0.8A 12V charging for smaller batteries

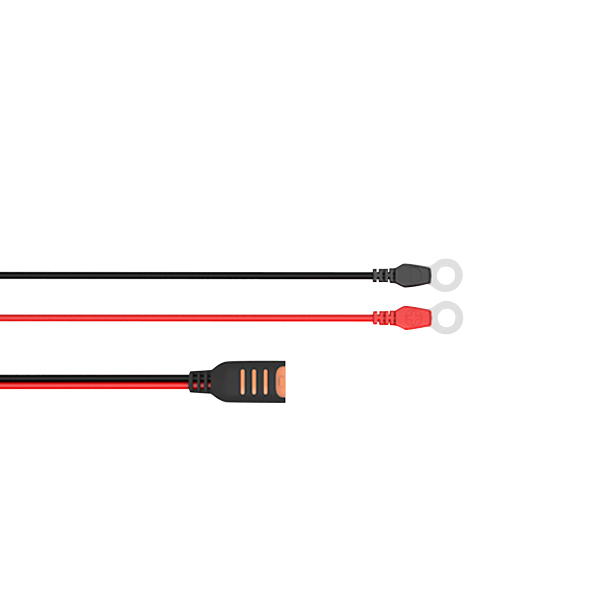

US 0.8 (Part No. 56-865) is CTEK’s smallest 12V charger. It offers state of the art technology and is perfect for charging smaller 12V batteries that can be found in motorcycles, jet skis, ATVs, and lawnmowers. It is also suitable for maintenance charging “normal- sized” batteries such as car batteries. The unique display allows the user to follow the entire charging process. The US 0.8 is a compact and fully automatic 6-step charger for 12V batteries from 1.2–32 Ah and is suitable for maintenance charging up to 100 Ah. The US 0.8 is splash and dustproof, delivers 0.8 A, and is designed to protect vehicle electronics. It is non-sparking, reverse polarity protected, and short circuit proof. The US 0.8 is delivered with a 5-year warranty. Alligator clamps and eyelets included.

Features

Fully automatic charging and maintenance in 6 steps maximizes battery life and performance
Numerous accessories simplify using the same charger for multiple batteries
Water-resistant so that the solution can be taken to the problem even if it rains or snows
Patented maintenance charge for a unique combination of maximized life and performance
Patented desulphation that extends the battery life
No sparks, short-circuit proof and reverse-polarity protected for untroubled usage

US_0.8-manual-low-US-EN.pdf

US_0.8-productsheet-low-US-EN.pdf

Charging categoryAC charging
Input100–120 VAC, 50–60 Hz, 0.2 A
Output14.4 V, 0.8 A
Battery chemistryLead acid
Battery types12 V:; WET; MF; Ca/Ca; AGM; GEL
Battery capacity1.2-32 Ah, up to 100 Ah for maintenance
Back current drain*corresponding to less than 1Ah/month
Battery voltage12 V
Ambient operating temperature-4 °F to +122 °F
Start voltage2.0 V
Ripple**Less than 4 %
Charge CurrentMax 0.8 A
Warranty5 years
DisclaimerAll products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.

*) Back current drain is the current that drains the battery if the charger is not connected to the power outlet. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.

>

US_0.8-manual-low-US-EN.pdf

US_0.8-productsheet-low-US-EN.pdf
