MXS 10 CIC UK

Knowing when a vehicle battery in the showroom needs a charge and being able to deal with it simply and quickly, is vital in helping dealerships to deliver a first-class experience to the customer, right from the moment they step into the showroom.

Description

Charging solution for dealership showrooms or fairs

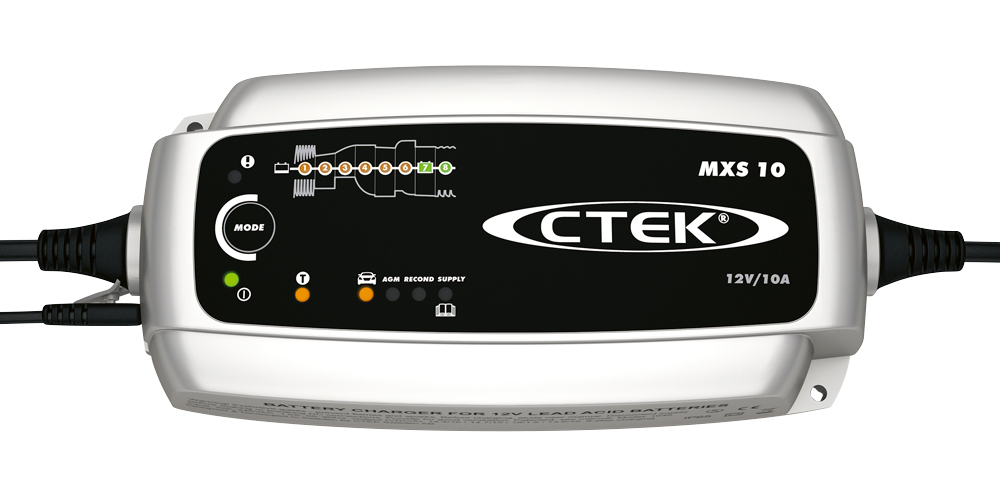

The MXS10 CIC is a battery management system that will help to monitor and maintain vehicle batteries in the showroom. It consists of two highly effective and simple to use pieces of equipment: A simple ‘traffic light’ Comfort Indicator allows dealership staff to easily monitor battery status and identify if the battery needs a charge. A CTEK MXS10 battery charger delivers a 10A charge safely, and without the need to remove the battery from the vehicle. The unique CTEK Comfort Connect system allows the charger to be connected to the battery via the Comfort Indicator, enabling showroom staff to safely, simply and quickly deliver a charge without assistance from a technician. By taking a pro-active approach to battery management and using the MXS10 CIC system, battery related problems in the showroom can be eliminated, maximizing the customer experience and protecting dealership and brand reputation.

Features

Maintains larger batteries up to 300Ah
Easy to read LED display
Comes with Connect – Eyelet and Connect – Clamp connectors
Splash and dust proof (IP65)
Safe spark free operation
Reverse polarity protected
Short circuit proof
Fully automatic ‘connect and forget’ 8 step charging
Charges batteries from 20-200Ah
Temperature sensor, AGM and Recond programs
Power supply for 12V equipment
2-year warranty

MXS_10_CIC-productsheet-low-UK-EN.pdf

Charging categoryAC charging
Input220–240 VAC, 50–60 Hz, 1.4 A
Output14.4/14.7/15.8/13.6 V, 10 A
Battery chemistryLead acid
Battery types12 V:; WET; MF; Ca/Ca; AGM; GEL
Battery capacity20–300 Ah
Back current drain*Corresponding to less than 1 Ah/month
Battery voltage12 V
Ambient operating temperature-20 ˚C to +50 ˚C
Start voltage2.0 V
Temperature compensationExternal charge voltage temperature compensation sensor
Degree of protectionIP65
Warranty2 years
Warranty, infoLimited Warranty
DisclaimerAll products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.

*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.

>

MXS_10_CIC-productsheet-low-UK-EN.pdf
