I1225 UK

The I1225 offers efficient and fast charging and is ideal charging and maintenance charging of 12V vehicles and machinery.

Description

12V | 25A charger with temperature regulation, for permanent installation

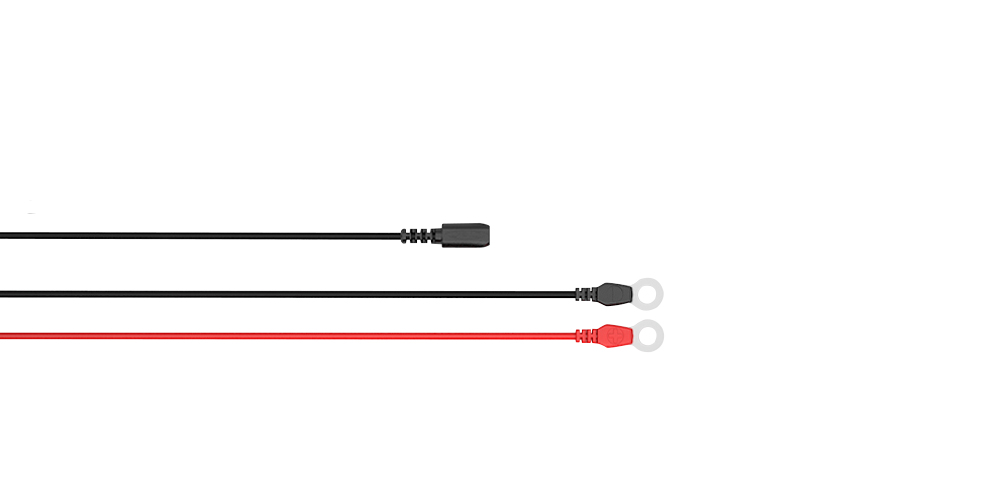

The I1225 fully automatic 7 step charger delivers 25A to 12V batteries from 40-500Ah and is IP44 classified for outdoor use. It features automatic battery diagnosis to establish whether your battery can receive and retain a charge, unique maintenance charging and a temperature sensor for optimised charging regardless of weather conditions. The I1225 comes with 2 m cable with M10 eyelets for easy installation.

Features

Charges batteries from 40-500Ah
Patented maintenance charge for longer life batteries
Temperature sensor to compensate for cold conditions
Reverse polarity protected
Short circuit proof
Fully automatic ‘connect and forget’ 7 step charging

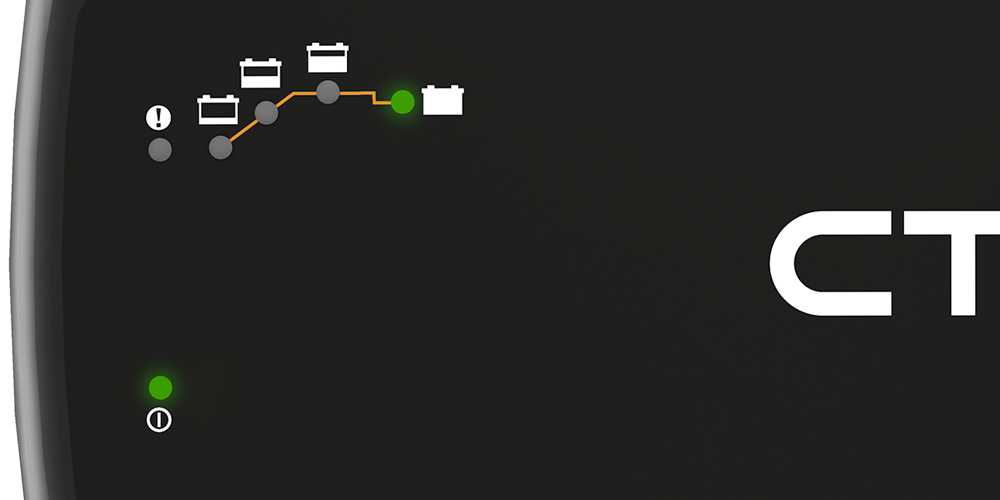

Easy to read LED display
IP44 classified for outdoor use
Safe spark free operation
2-year warranty

I1225-manual-low-UK-EN.pdf

I1225-safetyinstruction-low-UK-EN.pdf

I1225-productsheet-low-UK-EN.pdf

Charging categoryAC charging
Input170–260 VAC, 50–60 Hz, 2.9 A
Output14.4 V, 25 A
Battery chemistryLead acid
Battery types12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL
Battery capacity40–500 Ah
Back current drain*Corresponding to less than 2 Ah/month
Battery voltage12 V
Ambient operating temperature-20 ˚C to +50 ˚C
CoolingFan
Ripple**Less than 4 %
Degree of protectionIP44
Gross weight (unit in box)2.1 kg
Dimensions (L x W x H)235 x 130 x 65 mm
Charging cable length (output)2 m
Net weight (unit with cables)1.7 kg
Warranty2 years
DisclaimerAll products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.

*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
